Home Products Tomato Ketchup Making Plant & Equipment,
COD not available
Tomato Sauce Making Equipment by AAMITKP2

Tomato Ketchup Making Plant & Equipment,

INR 1250000
Share with
Share this on :

Description

Product details

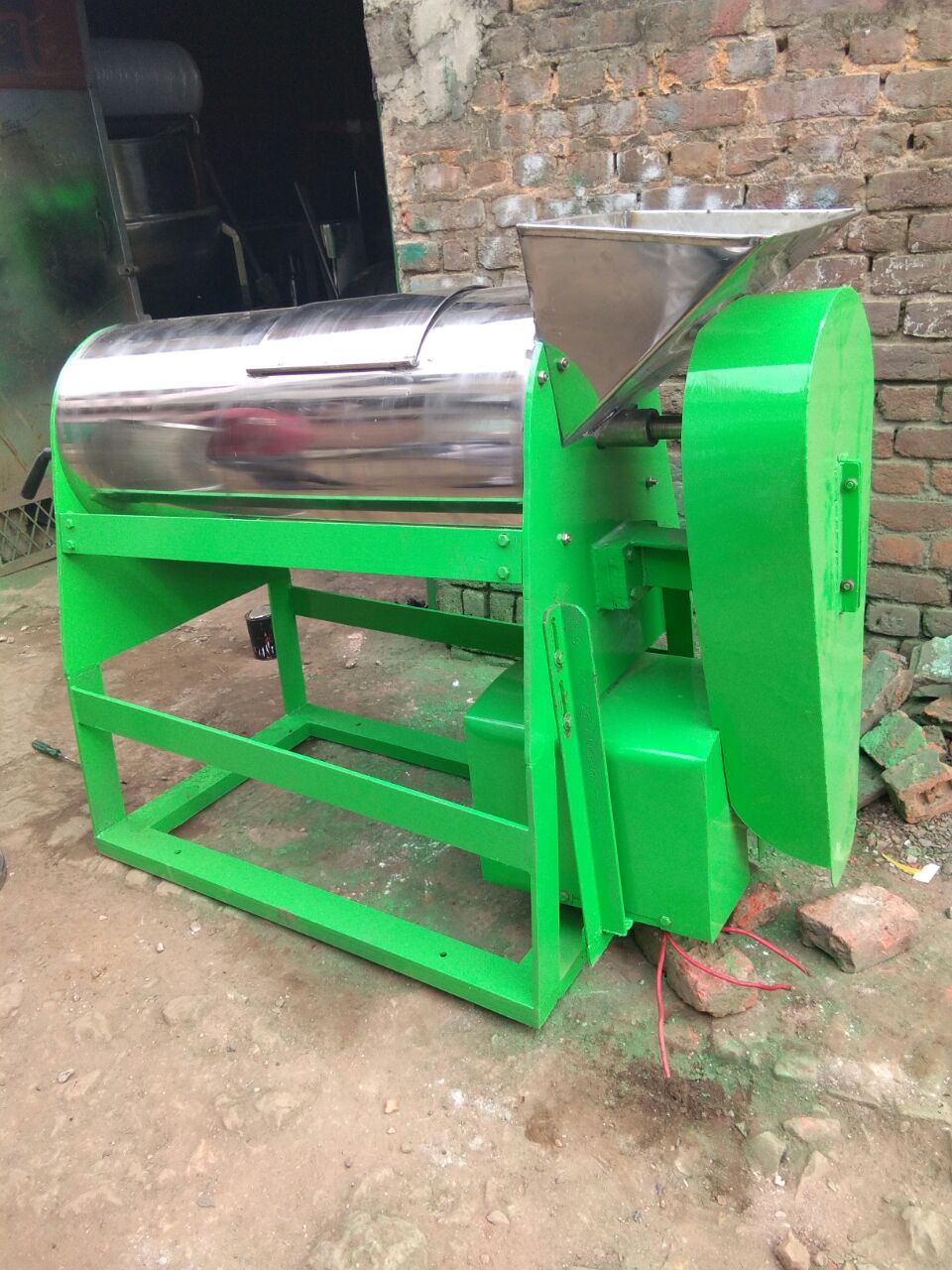

AAMIFM2- FRUIT MILL/CRUSHER SENIOR: Mounted on a Mild Steel stand with 2Hp/3Ph motor. All contact parts made of stainless steel (AISI 304). Capacity 300 to 600Kg per hour. The product is fed into hopper and Stainless Steel rotor, which crushes it against the Stainless Steel blades to Crushes the product AAMIFP2- PULPER: All contact parts made of Stainless Steel AISI-304. Mounted on Mild Steel frame duly fitted with 2Hp/3Ph motor. Along with One sieve and One set of Nylon Brush. Capacity of is 200 to 600Kg tomato/hrs. (Input). AAMIP-PULPRIZER CUM FRUIT CRUSER: Specially designed to make paste/Pulp of Vegetables/Fruits like Aloe Vera, CHILLI/ GINGER/ GARLIC/ ONION/ CARROT etc. All contact parts made of Stainless Steel-304. Complete with SS cladding and covering with Stainless Steel 202 Frame mounted on Stainless Steel 202 Fitted with SS grinding head with suitably designed grinding head. The unique feature of the machine is that the grinding head is water jacketed to facilitate low temperature of the grinding head while the grinding process. This ensures high quality of the material and avoids natural pungency/flavor/colour losses. Fitted with 2mesh (1/16, 1/8) for different mesh grinding option. Uniquely designed crushing head. Works on high RPM crushing principles @1400RPM, thus ensuring high fibrous products are also evenly grinded. With 10Hp/3Ph Motor. (Make: Crompton/Havelles) Capacity 180/450Kg Per Hr+/- AAMSJKTT50TT- STEAM JACKETTED TILTING TYPE KETTLE: Mounted on a mild steel stand with tilting arrangement through worm gear/pinion. Jacket and pan made of 10/10swg.stainless steel 304. Complete with pressure gauge, safety valve, steam Trap, Drain Cock The kettles are double jacketed for maximum steam utilization and efficiency. Capacity 50 GALLONS 225 litres AAMSJKTTS10TTS- STEAM JACKETTED TILTING TYPE WITH SCRAPPER KETTLE: Mounted on a Stainless Steel Stand with tilting arrangement through worm gear/pinion. KETTLES TILTING TYPE WITH TUFLON SCRAPPER FITTED WITH GEARED MOTOR WITH 1HP/3Ph, ELECTRIC MOTOR COMPLETELY MADE OF STAINLESS STEEL Jacket and pan made of 10/10swg.stainless steel 304. Complete with pressure gauge, safety valve, steam Trap, Drain Cock The kettles are double jacketed for maximum steam utilization and efficiency. Capacity 50 GALLONS 225 litres AAMIVFM2- VACUUM FILLING MACHINE: Two filling heads, suitable for filling all sizes and types of bottles to a predetermined level. Capacity 10/15 bottles/minute. Suitable for filling all types of liquids to a predetermined level in glass, rigid HPDE & aluminum bottles with narrow necks. The machine is designed to accommodate Ketchup, Hot Syrups & is fitted with over flow glass jars. Mounted on Mild Steel Stand, Completely cladding made of Stainless Steel 304. And More items, in case any clarification please be Call us on +91 99990 20148, 9999102413

Other Products

Related Products

AAMIWT-WORKING TABLE: Top stainless steel 304. With Mild steel Frame legs. Approx. Size 6’*3’*3’ M.S. frame work. (Optional) AAMIFM-FRUIT MILL/CRUSHER (SENIOR): Mounted on a Mild Steel stand With 3HP/3Ph Electric motor. All contact parts made of stainless steel (AISI 304). Capacity 1tones per hour. The product is fed into hopper and S.S rotor, which crushes it against the SS blades, crushes the product. AAMIP2- PULPER: All contact parts made of stainless steel AISI-304. Mounted on Mild Steel frame duly fitted with 2Hp/3Ph Electric motor. One sieve and one set of nylon brush. Capacity of is 300 to 600Kg+/- tomato/hrs.(Input). Cost of extra sieve (if required) Cost of extra brush AAMISJKTT-STEAM JACKETTED TILTING TYPE: Mounted on a mild steel stand with tilting arrangement through worm gear/pinion. Jacket and pan made of 10/10swg.stainless steel. Complete with pressure gauge, safety valve, steam Trap. The kettles are double jacketed for maximum steam utilization and efficiency. TILTING type kettle Capacity 50 GALLONS 225 Litres AAMISJKFT-STEAM JACKETTED FIXED KETTLE: Mounted on a Stainless steel stand. Jacket and pan made of 10/10swg.stainless steel. Complete with pressure gauge, safety valve, steam Trap The kettles are double jacketed for maximum steam utilization and efficiency. KETTLES FIXED TYPE WITH TUFLON SCRAPPER FITTED WITH 1Hp/3Ph Electric along with GEAR BOX, COMPLETELY MADE OF S.S. (LEGS, MOUNTING ETC.) 50 GALLONS 225 Litres AAMI-ROTARY BOTTLE WASHER: Specially designed to wash glass bottles from inside and outside. You have to placed the bottle mouth on the nozzles and with high pressure spray water dust particles will remove from inside and outer fountains will wash it from outside Capacity-20/24 BPM (OPTIONAL) AAMI-SINGLE HEAD PENUMATIC FILLER: - Suitable for filling viscous liquids like Honey, Jam, Mayonnaise, Cheese Spread, Gravy, Sauces etc. FEATURES: Accurate filling precision is achieved by the state of the art pneumatic filler. Designed and devolved base on japans technology. Complete made of SS, confirm to GMP standard. The weight range is easily adjustable by turning of a toggle lever. Easy to dismantle and install, easy to wash. Filling range- 200-1000ml. Capacity-20-25 fills per minute depending on operator Compressor required for Pneumatic Filler customer Scope for Rs.22,000.00 extra AAMILCM- LUG CAP SEALING MACHINE: Pneumatic operated, equipped with pneumatic cylinder, provides constant pressure on the cap and then with gentle twist of handle the cap gets sealed. Without air compressor Client Scope Compressor required for Pneumatic Filler & Lug Cap Sealing Machine, with 2Hp Motor AAMI- SHRINK TUNEL: Suitable for attaching shrink slives on necks, Appling shrink on cartons for cans/bottles. Complete with electrical control panel, temperature controller etc. AAMI-BABY STEAM BOILER: 200 KGS. /HRS. capacity, Semi/automatic, ‘straight water tubes steam boiler having M.S. tubes, boiler quality tubes fitted in a shell, with water feed system (pump and motor), Semi automatic diesel firing system with standard boiler accessories and economizer to feed the hot water for fuel economy –(Diesel/LDO fired). Electric Motor and air blower also with a motor, pressure gauge, safety valves, internal pipe lining and electrical fittings – with a very efficient oil burner for a very long life span and trouble free service. All you need is a pipe line from your water softener to boiler, a steam line from boiler to your plant. Note: Installation & Fitting Charge Extra Approx Kettle to Boiler Fitting for Rs.65,000.00
View Details
Jam Or Jelly Processing Equipment

INR486000

AAMIPCM- PAPAYA SLICING & CUBING MACHINE: - Mounted on a suitable Stainless Steel frame. Electrically operated, Fitted with 2Hp/3Ph. Cube cutting sizes 6mm thickness fed from S.S hopper which comes in contact with cylindrical cutter provided with S.S blades cuts size Blade 6mm, the raw, Capacity 300 To 700Kg/Hr +/- Extra Rulla if required then cost of (Optional) Rs.72,000.00 Extra Rubber Rulla (Optional) Rs. 45,000.00 AAMDSSJK- STEAM JACKETTED TILTING TYPE KETTLE: Mounted on a mild steel stand with tilting arrangement through worm gear/pinion. Jacket and pan made of 10/10swg.stainless steel. Complete with pressure gauge, safety valve, steam Trap The kettles are double jacketed for maximum steam utilization and efficiency. CAPACITY- 225 Litres, 50 Gallon AAMIBL2- BABY STEAM BOILER (WOOD FIRED): 200 KGS./HRS. Capacity, Semi/automatic straight water tubes steam boiler having M.S. tubes, boiler quality tubes fitted in a shell, with water feed system (pump and motor), Semi-automatic wood firing system with standard boiler accessories and economizer to feed the hot water for fuel economy –(Wood fired). Motor Pump, pressure gauge, safety valves, internal pipe lining and electrical fittings – with a very efficient oil burner for a very long life span and trouble free service. All you need is a pipe line from your water softener to boiler, a steam line from boiler to your plant, at extra cost. Installation and Commissioning charge extra, final price given after visit at your works. Steam Pipe Line along with required fitting cost extra for Rs. 65,000.00 Working Table: complete made of Stainless Steel, Approx size: L4’ x W3’ x H3’ Holding Tray, Capacity 100/125Kg. complete made of Aluminum AAMIBS-BAND SEALER: Continuous Band Sealer with Conveyor Belt, It is highly versatile high speed sealing machine meant for continues operation to seal all types of pouches. Made out of laminates or virgin films. The conveyor can be adjusted up and down as per the size of the pouch. The band sealer can be linked with semi-automatic filling. Plant Installation & Pipe line for Boiler to Kettle
View Details
Tutty Fruity processing Equipment

INR656000

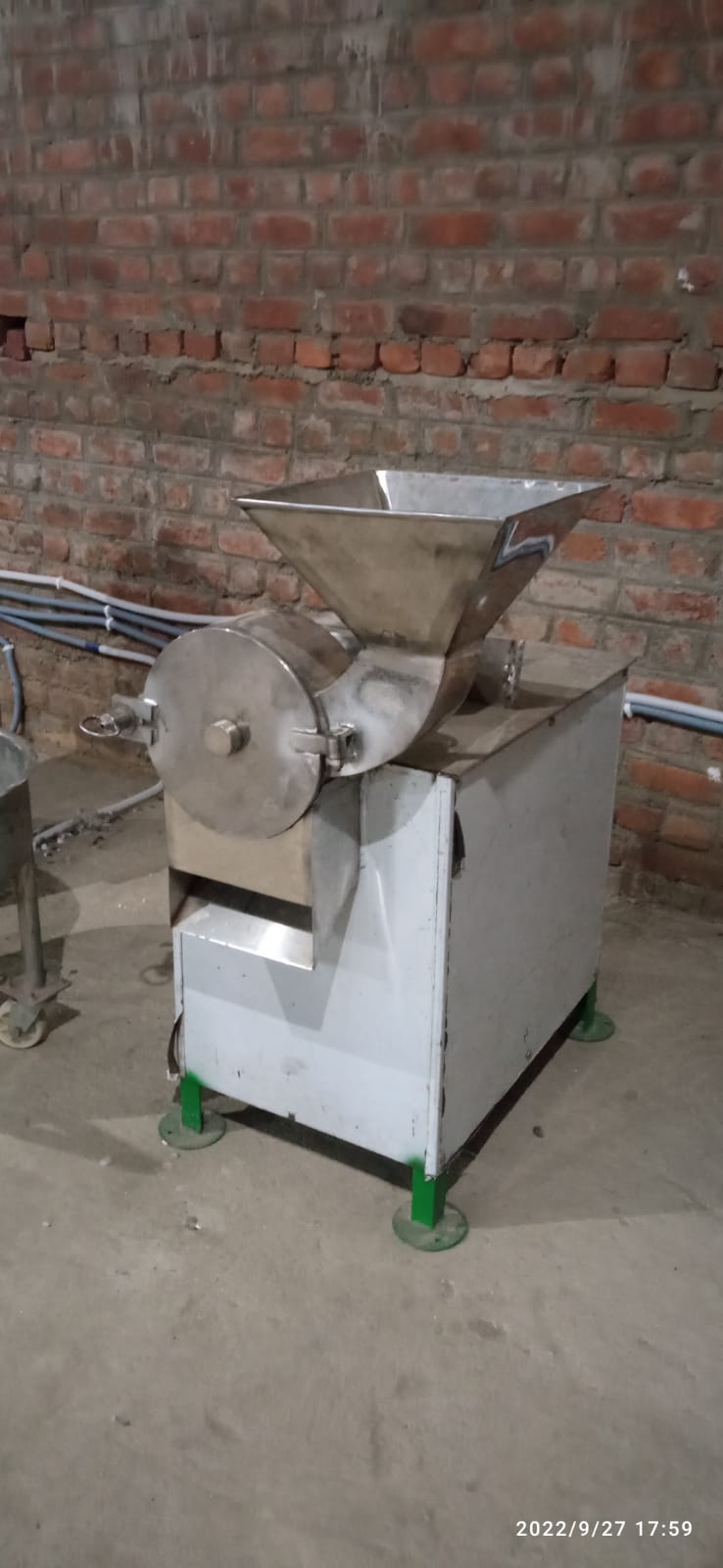

PULPRIZER CUM FRUIT CRUSER: Specially designed to make paste/Pulp of Vegetables/Fruits like Aloe Vera, CHILLI/ GINGER/ GARLIC/ ONION/ CARROT etc. All contact parts made of Stainless Steel-304. Complete with SS cladding and covering with Stainless Steel 202 Frame mounted on Stainless Steel 202 Fitted with SS grinding head with suitably designed grinding head. The unique feature of the machine is that the grinding head is water jacketed to facilitate low temperature of the grinding head while the grinding process. This ensures high quality of the material and avoids natural pungency/flavor/colour losses. Fitted with 2mesh (1/16, 1/8) for different mesh grinding option. Uniquely designed crushing head. Works on high RPM crushing principles @1400RPM, thus ensuring high fibrous products are also evenly grinded. With 5Hp/3Ph Motor. (Make: Crompton/Havelles) Capacity 200/600Kg Per Hr+/-
View Details
Pulprizer

INR135000
